Ever wondered why the world’s most advanced chipmakers are suddenly obsessing over how they glue silicon together, rather than how small they can etch it? For years, the semiconductor story was all about shrinking transistors further. But somewhere between the rise of AI accelerators and the limits of physics, the real breakthrough moved from the transistor to the seam between chips. That seam, and how precisely it’s engineered, is quietly becoming the single biggest lever left for performance gains in computing. This is the story of hybrid bonding, and why it now sits at the center of nearly every major packaging roadmap in the industry. Traditional microbumps hit a physical wall at roughly 10-micron pitches.

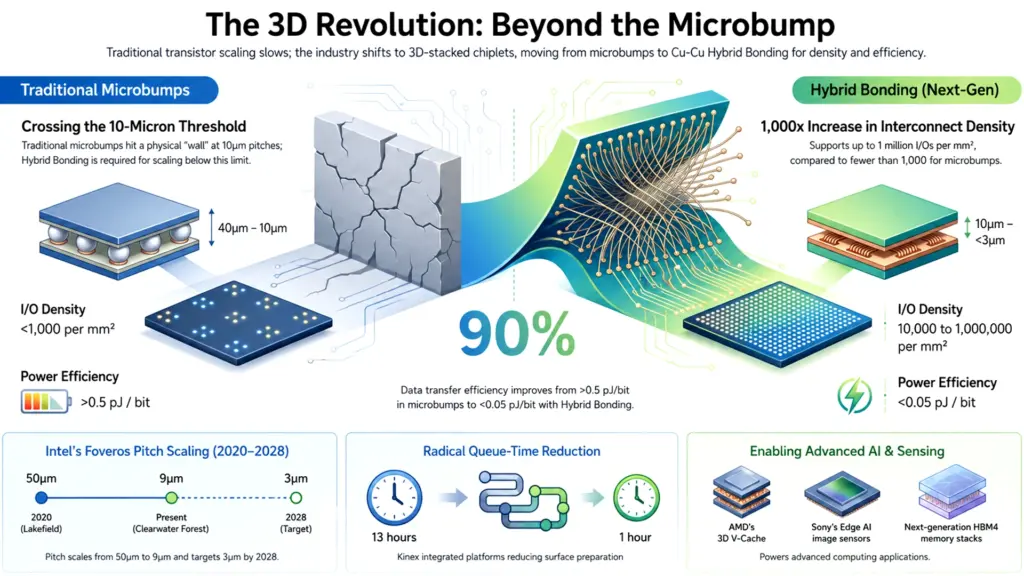

Hybrid bonding does not edge past that wall, it removes it, enabling interconnect density increases on the order of 1,000x, from fewer than 1,000 I/Os per mm² with microbumps to as many as 1 million I/Os per mm² with copper-to-copper hybrid bonds. Power efficiency improves in step, from more than 0.5 picojoules per bit with microbumps to less than 0.05 picojoules per bit with hybrid bonding, roughly a 10x gain in energy efficiency per connection.
The scale of the shift, at a glance:
- Pitch: 40 to 10 micrometers (microbumps) compressing to 10 micrometers down to sub-1 micrometer (hybrid bonding)
- I/O density: under 1,000 per mm² versus 10,000 to 1,000,000 per mm²
- Power efficiency: greater than 0.5 pJ/bit versus less than 0.05 pJ/bit
- Interconnect density gain: independent industry estimates converge in the 30x to 1,000x range depending on configuration and pitch achieved
We would frame this less as a packaging upgrade and more as a re-architecture of how chips are built. The die is no longer the unit of manufacturing efficiency; the stack is.
How did the industry get here, and where is it heading?

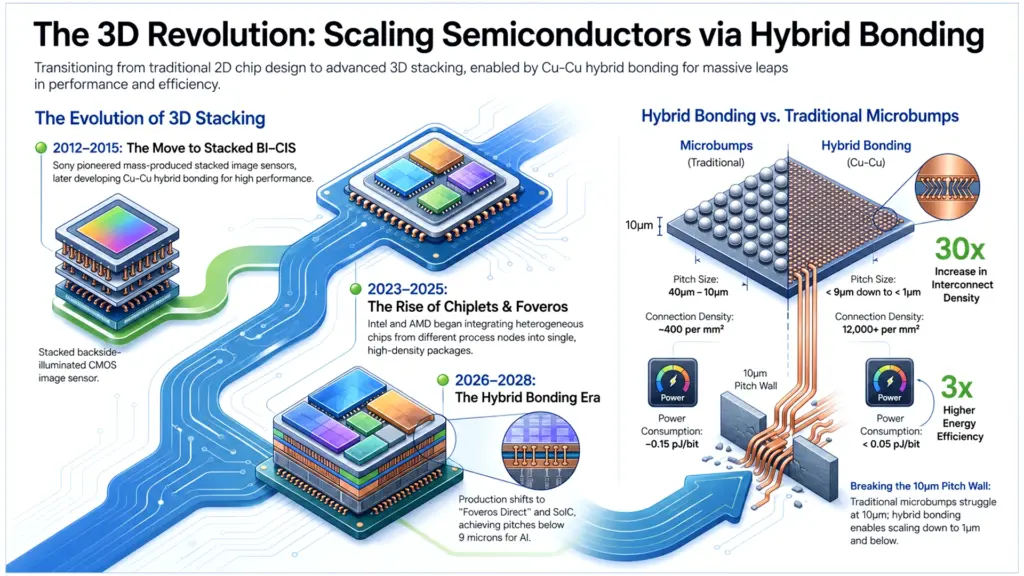

The path to hybrid bonding did not happen overnight. It traces a clear three-phase arc:
Stage One: 2012–2015 – Stacked BSI
Sony developed and manufactured mass-produced stacked backside-illuminated image sensors. That same stacked design would later become a basis for copper-to-copper hybrid bonding to enable higher performance. Thus, it represents the beginning of a new technology that is today at the center of AI chip roadmaps.
Stage Two: 2023–2025 – Chiplets and Foveros
Intel and AMD began combining heterogeneous chips from multiple process nodes into single packages. For example, Intel’s Foveros Pitch Scaling illustrated the speed: From 50 micron in 2020 (Lakefield) to approximately 9 microns today (Clearwater Forest); and with a goal to reach 3 microns by 2028.
Stage Three: 2026–2028 – Hybrid Bonding Era
Production is migrating to technologies like Foveros Direct and SoIC with pitches smaller than 9 microns specifically to support AI workloads. Also, process efficiency is declining rapidly. Integrated platform radical queue-time reductions are reducing surface prep times from about 13 hours to approximately 1 hour. Those changes will benefit fab throughput and unit economics along with improving device performance.
This timeline is important strategically because it shows that hybrid bonding was already on a 15-year development cycle prior to the emergence of AI making it necessary.
Which forces are pushing this from lab result to industry requirement?
Three forces driving the industry simultaneously are:
AI and high-performance computing: Generative AI and HPC workloads consume significant bandwidth and power. Short vertical paths in hybrid bonding significantly reduce both latency and energy consumed per bit transferred, precisely what accelerator and HBM designs require. AMD’s 3-D V-Cache, Sony’s Edge-AI Image Sensors, and Next Generation HBM4 Memory Stacks are identified as direct beneficiaries.
The limits of microbump technology: As HBM stacks pushing forward to 16, 20, and eventually more layers, solder-based microbump technology will hit limitations related to pitch, thermal resistance and reliability. Samsung engineers have already demonstrated that 16-layer HBM stacks can be achieved via hybrid bonding, with research suggesting more than 20 layers is achievable.
Advanced logic requirements: Chiplet-based designs rely on die-to-die connections that conventional 2.5-D packaging cannot provide at the same density.
What does the patent landscape reveal about who actually controls this technology?
The picture becomes sharper quickly here. By looking at a list of standardized patent assignees involved with hybrid bonding, we see that there is a concentration of ownership much larger than a simple listing of equipment vendors.

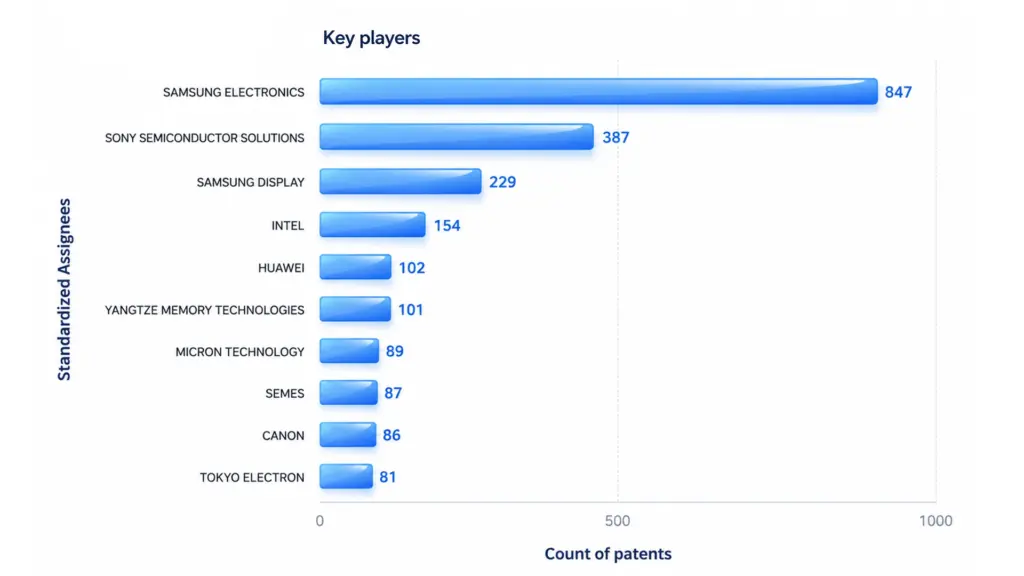

By Raw Patent Volume
Based on sheer numbers, Samsung Electronics leads decisively with 847 patents. The next largest holder of patents is Sony Semiconductor Solutions with 387 patents. Then comes Samsung Display with 229 patents. Following them are Intel with 154 patents, Huawei with 102 patents, Yangtze Memory Technologies with 101 patents, Micron with 89 patents, SEMES with 87 patents, Canon with 86 patents, and Tokyo Electron with 81 patents.
Two things stand out immediately:
- Samsung’s presence in two separate businesses (Electronics and Display) indicates a purposeful, coordinated effort to integrate device and display IP together, not simply a single business unit taking action.
- Sony’s strong second-place position confirms our previous historical statement: Its legacy of stacked Backside Illuminated (BSI) image sensors enabled Sony’s technological leadership in hybrid bonding patents, as well as product.

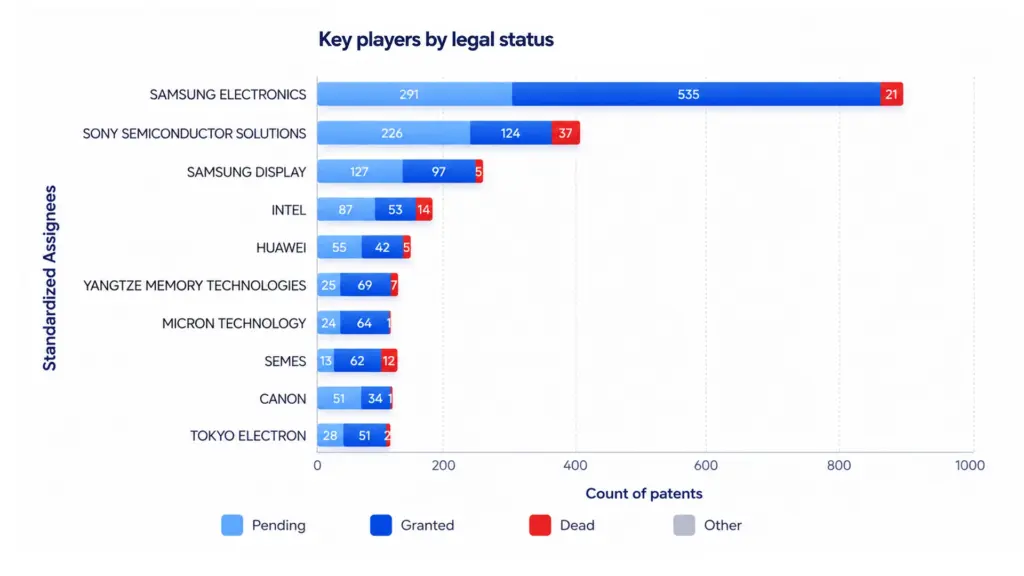

By Legal Status
The picture becomes more clear. Samsung Electronics’ portfolio breaks down to roughly 291 pending, 535 granted, and 21 dead patents, an unusually high grant rate that signals both an aggressive filing strategy and strong prosecution success. Sony’s split (226 pending, 124 granted, 37 dead) suggests a portfolio still working through examination, with more IP yet to convert to granted protection. Smaller players such as SEMES and Yangtze Memory Technologies show meaningfully higher dead-patent ratios relative to their granted counts, worth watching as a signal of where competitive filing pressure or examination rejections are concentrated.

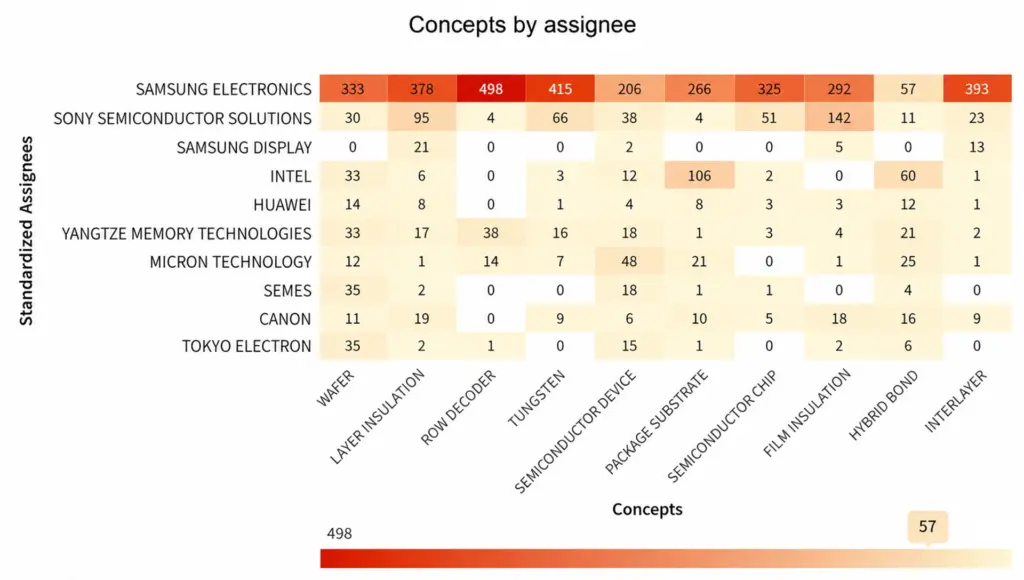

By Technology Concept
A heatmap of concepts by assignee shows Samsung Electronics with dominant activity not just in “hybrid bond” itself (57 mentions) but far more heavily in adjacent foundational concepts: row decoder (498), tungsten (415), semiconductor chip (325), and interlayer (393). This is a meaningful strategic signal. Samsung is not simply patenting the bonding step. It is patenting the surrounding device architecture that hybrid bonding enables, which suggests the intent is to control integration outcomes, not just the joining process itself. Intel, on the other hand, has focused primarily on package substrate (106), a more limited but potentially defendable area.

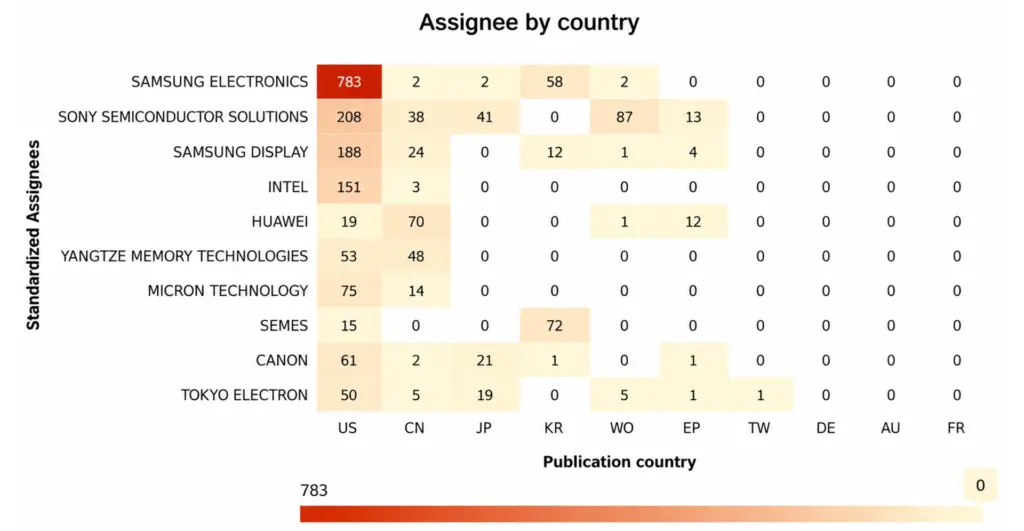

By Geography
Patent publication is extremely concentrated in the United States (Samsung Electronics alone reports 783 U.S. publications). There is some activity reported in China, Japan, South Korea and Europe but it is much less frequent than in the U.S. Huawei filings represent an anomaly in terms of geographic distribution with 70 filings reported in China and only 12 in Europe; similar to other trends in Chinese semiconductor IP strategy.
From a technology intelligence perspective, the patent landscape presents a clear picture: IP for hybrid bonding is highly concentrated among a small set of vertically-integrated players (Samsung, Sony, Intel), who are patenting both the bonding process and the downstream device applications. Therefore, for any company evaluating entry, partnership, or licensing strategy in this space, Freedom-to-Operate analysis needs to consider far more than patents explicitly titled “hybrid bond.”
How is the technology itself classified, and why does that matter for strategy?
Patent and technical taxonomies for hybrid bonding now span a genuinely wide classification structure, which itself signals how far the field has moved beyond a single technique:
Core technical dimensions include:
- Bonding technique (chip-to-chip, chip-to-wafer, wafer-to-wafer)
- Integration level (2.5D, 3D, fan-out and fan-in wafer-level packaging)
- Substrate and bonding materials (silicon, compound semiconductors, ceramic, glass, SOI, metal, dielectric, polymer)
- Defect detection and type (image-based, model-based, and circuit-based detection; sticking defects, crystal fixing, voids, cracks)
- Cleaning and equipment (plasma, wet, chemical, and thermal cleaning across substrate, chip, and tool; chuck types spanning vacuum, electrostatic, magnetic, and mechanical; bondhead features spanning optical, infrared imaging, mechanical, and X-ray alignment)

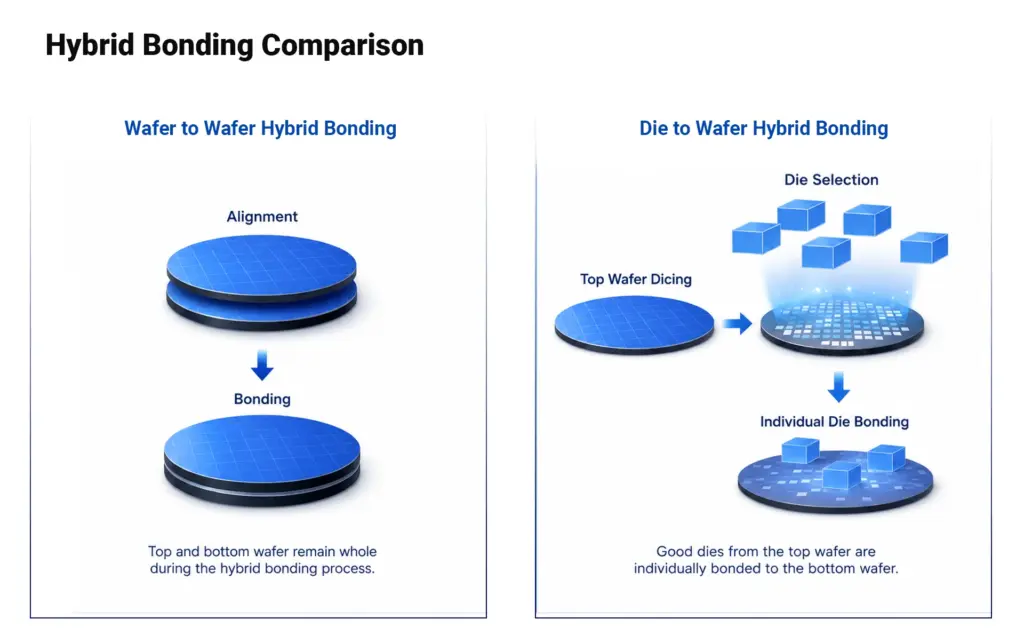

The wafer-to-wafer versus die-to-wafer distinction remains the fundamental fork in process strategy. In wafer-to-wafer bonding, both wafers remain whole throughout alignment and bonding, favoring throughput and simplicity. In die-to-wafer bonding, individual known-good dies are selected from a diced top wafer and bonded individually to the bottom wafer, favoring yield and heterogeneous integration at the cost of process complexity.
For a client evaluating where to invest, whether wafer-to-wafer or die-to-wafer, this classification structure is a useful due diligence checklist: any vendor or technology claim should be mapped against these categories before comparison, since “hybrid bonding capability” can mean genuinely different things depending on which combination of these variables is being addressed.
Why is precision execution the real bottleneck, not equipment access?
This is the part of the story that gets underweighted in market commentary. Hybrid bonding does not fail on availability of tools; it fails on tolerances.
The bonding sequence itself is instructive. Two chips or wafers, each with copper pads recessed into a dielectric surface, are pressed face to face to form an initial hydrogen bond. The stack is then annealed, converting that weak initial bond into a strong covalent one while the copper expands to close the gap and fuse electrically. Every stage carries a tight failure margin:
Alignment accuracy below 50 nanometers is becoming standard for die-to-wafer bonding, where thermal drift, wafer warpage, and optical distortion all directly affect yield.
Surface flatness and cleanliness must approach front-end fabrication standards. Copper recess depth, typically just 1 to 5 nanometers, has to be controlled almost atomic layer by atomic layer: too little expansion during annealing and the bond fails to fuse, too much and the wafers push apart.
Material choice at the bond interface is evolving too. Some researchers are exploring silicon carbonitride in place of silicon oxide, since it offers more chemical bonding sites and may produce stronger interlayer connections after annealing.
Defect amplification is unforgiving in stacked systems. A single bonding error can scrap an entire high-value multi-die assembly, which is why inspection is moving from a downstream check to an inline, yield-critical function.
In short, the companies that win in hybrid bonding will not be the ones who adopt the equipment first. They will be the ones who run it at yield, and the patent data above suggests Samsung and Sony currently hold the strongest IP position to do exactly that.
Where does this reach beyond AI chips?
Hybrid bonding’s relevance is broadening well past the accelerator and HBM story that dominates headlines:
- Image sensors and cameras, already the most mature commercial application of wafer-to-wafer bonding, and the historical entry point for Sony’s leadership position
- Consumer electronics, where smartphones and wearables need more function in less volume
- Automotive electronics, as EV and autonomous driving systems demand denser, more capable processors and sensor arrays
- Quantum computing hardware, where researchers are experimenting with superconducting niobium bonding rather than copper
And the materials scope is widening too. Gallium nitride-to-silicon and glass wafer bonding are both active research areas alongside the dominant silicon-to-silicon approach, an indication that hybrid bonding is becoming a general-purpose integration platform rather than a single-application technique.
What should manufacturers, equipment suppliers, and their partners prioritize now?
Based on where the technology roadmap, precision requirements, and patent landscape converge, a few priorities stand out:
- Sequence high-value use cases first, notably AI-driven HBM stacks, logic-on-logic integration, and bandwidth-critical chiplets, rather than pursuing hybrid bonding uniformly across the portfolio.
- Run freedom-to-operate analysis against adjacent concepts, not just “hybrid bonding” as a search term, given how concentrated the surrounding device-architecture IP already is among Samsung, Sony, and Intel.
- Co-design bonding, optical access, and alignment marks together, rather than treating inspection as something bolted on after the process is defined.
- Move inspection and metrology inline and upstream, to catch yield loss before it reaches high-value assembly stages.
- Watch the 2026 to 2028 window closely, since this is the period the roadmap data points to as the inflection from chiplet-era packaging to full hybrid bonding production maturity.
Where does this leave companies evaluating their advanced packaging strategy?
Hybrid bonding is transitioning from a differentiator to a baseline requirement across logic stacking, chiplets, and memory integration, and the patent landscape shows the competitive positioning for that transition is already well underway. The question for chipmakers, equipment suppliers, and their downstream customers is no longer whether to engage with the technology, but where in the value chain and IP landscape to place their bets, and how quickly precision execution capability can be built before the window for early advantage closes.
